FHS5140TWXHE6 is a newly developed road pollution removal vehicle by our company that integrates deep cleaning and solid waste collection. It can completely solve the problem of existing equipment being unable to effectively remove and recover pollutants such as road scale, compaction, and oil pollution. It can curb road dust from the source and achieve the goal of “sitting on the ground, seeing the true colors of the road”.
The vehicle adopts a modern Hongtu 14T chassis and is modified using innovative high-pressure water air jet technology, ultra clean vacuum recovery technology, and other technologies. The car has diverse functions, simple operation, and high reliability. Key supporting components such as hydraulic pumps, hydraulic motors, high-pressure water pumps, pneumatic components, and electrical components are all sourced from well-known domestic and foreign brands. The vehicle is equipped with a simple boom, which can quickly suck up roadside garbage and leaves, and clear blocked drainage pipes. The vehicle comes standard with four functions: deep removal of road pollution, removal of pollution from curb and curbstone facades, quick cleaning of roads, and collection of block shaped garbage. Other functions such as handheld cleaning discs can be optionally selected.
Scope of application:
? Suitable for deep removal of heavily polluted roads such as municipal roads, airports, docks, freight yards, power plants, steel mills, mines, etc. due to scale, compaction, and oil pollution;
? Restoration of drainage pavement function;
? Deep removal of road surface contaminated with toxic substances such as nuclear and biochemical substances;
? Road cleaning after flood and other disaster rescue operations.
Product advantages:
? Pioneering EHP high-pressure water air jet technology, utilizing a variable speed rotating high-pressure water jet for the removal of ground pollutants. The jet pressure is infinitely adjustable, with a standard water pressure of up to 300 bar, which can thoroughly remove road debris, crevice deposits, and various pollutants on the road;
? Ultra clean vacuum recycling has outstanding cleaning effect on road surfaces, which can completely and thoroughly remove road dirt, silt, oil stains, heavy metals, and no residual or leaked sewage;
? Hydrostatic walking drive, operating speed 0~10km/infinitely adjustable, with ultra-low speed cruise control function;
? Adopting a single engine design, the entire vehicle has a National VI emission standard and outstanding environmental performance;
? Equipped with permeable/drainage road function restoration function, the product’s operating effect far exceeds similar foreign products;
? Multiple homework modes, powerful clearing; Deep clearance; Clearing of curbstones and curbstone facades; Quick cleaning; Arm suction; Optional handheld cleaning tray with powerful functionality;
? The structure of the high-pressure jet cleaning device is advanced, and the structure of the material storage system is advanced;
? Multi functional: equipped with deep cleaning and emergency quick cleaning modes, safe and reliable;
? Intelligent and user-friendly operation: optional PM2.5 and PM10 automatic real-time pollution monitoring system。
| Parameter Item | Parameter Value |
| Vehicle dimensions (length x width x height) (mm)（mm） | 8140×2400×2860 |
| Maximum mass （kg） | 14060 |
| Clear water tank capacity（m3） | 5.5 |
| Sewage tank capacity（m3） | 6 |
| Maximum pressure of high-pressure jet（MPa） | 30 |
| Homework speed（km/h） | Depth clearing0-10 |
| Job width（mm） | 2300 |
| Horizontal shift operation（mm） | ±300/350 |
| Chassis brand | Heavy Duty Truck |
| Chassis specifications | 4×2 |
| Rated power of engine （kW） | 162 |
| Emission standards | NationalVI |
Note: The above parameters are for reference only
The “Haishan Hurricane” FHS5252TWQZE6 road pollution removal vehicle, based on the efficient composite turbine and other technologies of dozens of Haishan patents, completely solves the problem that the existing equipment can not effectively remove road dirt, hardening, oil and other pollutants, curbs road dust from the source, and realizes sitting on the ground. It can be widely used in the deep cleaning of roads, airports, wharves, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances. It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.
Product advantages：
? Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, and there is no sewage residue and leakage;
? Hydrostatic traveling drive, with automatic cruise function; Equipped with a water broom to clean the curb；
? The single engine design is adopted, and the whole vehicle has national six emission, with outstanding environmental protection performance；
? With permeable/drainage road function recovery function, the operation effect of the product is far superior to that of similar foreign products；
? With powerful functions, a single equipment can replace complete sets of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy；
? The frequency of operation is significantly reduced compared with the traditional combined operation mode, and the retention time of single deep pollution removal effect can reach 5-15 days；
? Meet the requirements for deep cleaning of roads in factories such as iron and steel, coal mines, ports, docks and other industrial sites, and curb road dust from the source；
? One machine with multiple functions: it has three working modes: deep cleaning, emergency quick cleaning and suction; Optional hand-held washer for deep cleaning of sidewalks；
? Intelligent and humanized operation: 360 ° video monitoring and intelligent anti-collision system; PM2.5, PM10 automatic real-time pollution monitoring system;
? Remote suction operation: the maximum operation distance of horizontal construction radius is 100 meters, and the maximum vertical construction distance is 40 meters；
? High efficiency and intelligence: the safety construction efficiency is much higher than that of manual work, which can be operated by full remote control, and the vehicle status can be monitored in real time.
| Parameter item | Parameter value |
| Overall dimensions (length × wide × High)（mm） | 10475×2500×3450 |
| Maximum mass（kg） | 25000 |
| Volume of clean water tank（m3） | 8 |
| Sewage tank volume（m3） | 9.5 |
| Working pressure of high pressure jet（MPa） | 30 |
| Operating speed（km/h） | 0-10 |
| Standard working width（mm） | 2500 |
| Left and right lateral displacement of high-pressure jet cleaning device（mm） | ±300 |
| Working radius of boom（mm） | 4800 |
| Inside diameter of suction pipe（mm） | 200 |
| Remote control operating distance（m） | 100 |
| Maximum horizontal suction distance（m） | 40-100 |
| Maximum vertical suction height（m） | 15-40 |
| Chassis brand | China heavy truck |
| Chassis specifications | 6×4 |
| Engine power（kW） | 297 |
| emission standard | National VI |
Note: The above parameters are for reference only
The “Haishan Hurricane” FHS5250TWQZE6 (all-weather type) road pollution removal vehicle, based on the efficient composite turbine technology and other technologies of dozens of Haishan patents, completely solves the problem that the existing equipment can not effectively remove pollutants such as road scale, hardening, oil pollution, etc., curbs road dust from the source, and realizes sitting on the ground. It can be widely used in the deep cleaning of roads, airports, wharves, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances. It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.
Product advantages：
? Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, and there is no sewage residue and leakage;
?Hydrostatic traveling drive, with automatic cruise function; Equipped with a water broom to clean the curb；
? The single engine design is adopted, and the whole vehicle has national six emission, with outstanding environmental protection performance；
? With permeable/drainage road function recovery function, the operation effect of the product is far superior to that of similar foreign products；
? With powerful functions, a single equipment can replace complete sets of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy；
? The frequency of operation is significantly reduced compared with the traditional combined operation mode, and the retention time of single deep pollution removal effect can reach 5-15 days；
? Meet the requirements for deep cleaning of roads in factories such as iron and steel, coal mines, ports, docks and other industrial sites, and curb road dust from the source；
? One machine with multiple functions: with deep cleaning and emergency quick cleaning working mode; The tail can be equipped with boom suction device, which can be connected with suction hose for fast suction of sand, soil, water and other materials; Optional hand-held washer for deep cleaning of sidewalks；
? Intelligent and humanized operation: 360 ° video monitoring and intelligent anti-collision system; PM2.5, PM10 automatic real-time pollution monitoring system.
| Parameter item | Parameter value |
| Overall dimensions (length × wide × High)（mm） | 10145/10425×2500×3450 |
| Maximum mass（kg） | 25000 |
| Volume of clean water tank（m3） | 8 |
| Storage bin volume（m3） | 9.5 |
| Working pressure of high pressure jet（MPa） | 30 |
| Operating speed（km/h） | 0-10 |
| Standard working width（mm） | 2500 |
| Left and right lateral displacement of high-pressure jet cleaning device（mm） | ±300 |
| Operation mode | Deep contamination removal/quick cleaning |
| Operating ambient temperature（。C） | -20~40 |
| Chassis brand | China heavy truck |
| Chassis specifications | 6×4 |
| Engine power（kW） | 297 |
| emission standard | National VI |
Note: The above parameters are for reference only
The “Haishan Hurricane” FHS5250TWQZE6 (deicing type) road pollution removal vehicle, based on the efficient composite turbine and other technologies of dozens of Haishan patents, completely solves the problem that the existing equipment cannot effectively remove pollutants such as road scale, hardening, oil pollution, etc., curbs road dust from the source, and realizes sitting on the ground. It can be widely used in the deep cleaning of roads, airports, wharves, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances. It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.
Product advantages：
? Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, and there is no sewage residue and leakage;
?Hydrostatic traveling drive, with automatic cruise function; Equipped with a water broom, which can clean the curb;
? The single engine design is adopted, and the whole vehicle has national six emission, with outstanding environmental protection performance；
? With permeable/drainage road function recovery function, the operation effect of the product is far superior to that of similar foreign products；
? With powerful functions, a single equipment can replace complete sets of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy；
? The frequency of operation is significantly reduced compared with the traditional combined operation mode, and the retention time of single deep pollution removal effect can reach 5-15 days；
? Meet the requirements for deep cleaning of roads in factories such as iron and steel, coal mines, ports, docks and other industrial sites, and curb road dust from the source；
? One machine with multiple functions: with deep cleaning and emergency quick cleaning working mode; The tail can be equipped with boom suction device, which can be connected with suction hose for fast suction of sand, soil, water and other materials; Optional hand-held washer for deep cleaning of sidewalks；
? Intelligent and humanized operation: 360 ° video monitoring and intelligent anti-collision system; PM2.5, PM10 automatic real-time pollution monitoring system.
| Parameter item | Parameter value |
| Overall dimensions (length × wide × High)（mm） | 10145/10425×2500×3450 |
| Maximum mass（kg） | 25000 |
| Volume of clean water tank（m3） | 8 |
| Storage bin volume（m3） | 9.5 |
| Working pressure of high pressure jet（MPa） | 30 |
| Operating speed（km/h） | 0-10 |
| Standard working width（mm） | 2500 |
| Left and right lateral displacement of high-pressure jet cleaning device（mm） | ±300 |
| Operation mode | De icing mode/deep contamination removal/quick cleaning |
| Deicing thickness（mm） | ≤10 |
| Operating ambient temperature（。C） | -35~40 |
| Chassis brand | China heavy truck |
| Chassis specifications | 6×4 |
| Engine power（kW） | 297 |
| emission standard | National VI |
Note: The above parameters are for reference only

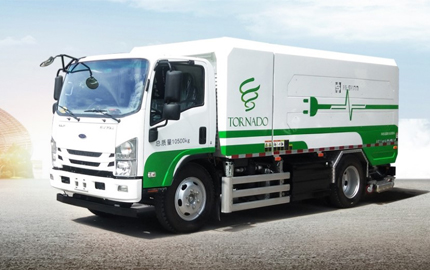

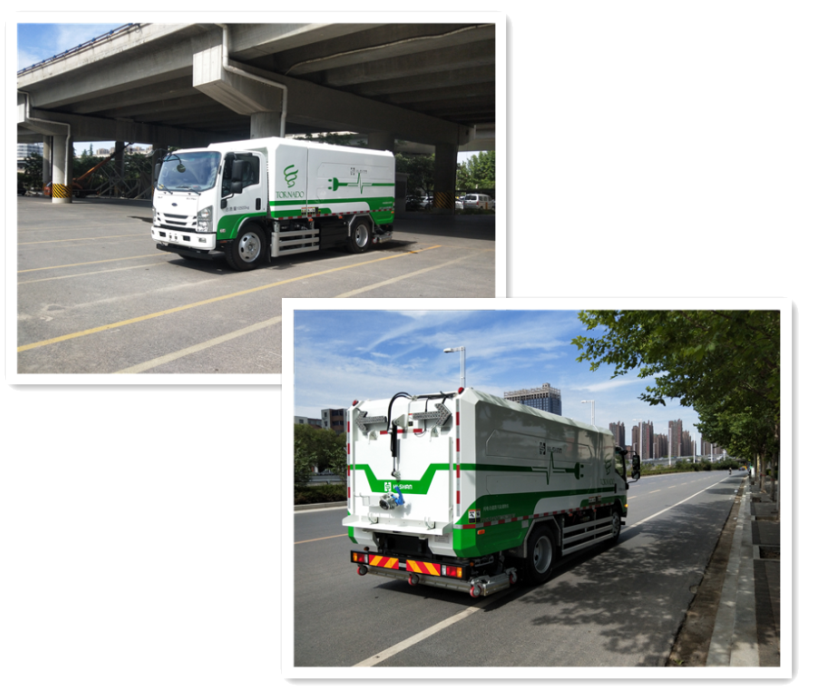

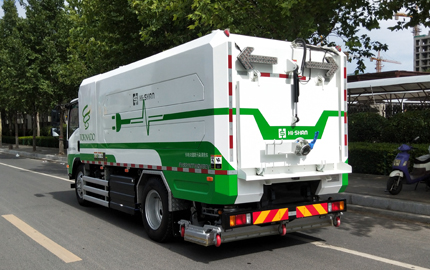

“The “Haishan Hurricane” FHS5100TWQWBEV(electric type) road pollution removal vehicle adopts a pure electric drive mode and has zero emissions. High efficiency composite turbine technology based on dozens of patents of Hasan has completely solved the problem that existing equipment cannot effectively remove pollutants such as road scale, hardening and oil contamination, and has curbed road dust from the source to achieve the goal of sitting on the ground. It can be widely used in the deep cleaning of roads, airports, wharves, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances. It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.
Product advantages：
? It matches the large power and high energy density lithium iron phosphate battery of Ningde Times, which is green, environmentally friendly, has a long service life, good environmental adaptability, strong safety protection, and more stable discharge；
? The whole vehicle has a long range and good mute effect, which can meet various complex urban working conditions；
? Short charging time, low power consumption, and it only takes 2 hours to fully charge once；
? Strong applicability, high reliability, and mature and reliable power assemblies；
? Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, and there is no sewage residue and leakage；
? Hydrostatic traveling drive, with automatic cruise function; Equipped with a water broom to clean the curb；
? Single engine design, zero emission, outstanding environmental performance；
? With permeable/drainage road function recovery function, the operation effect of the product is far superior to that of similar foreign products；
? With powerful functions, a single equipment can replace complete sets of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy；
? The frequency of operation is significantly reduced compared with the traditional combined operation mode, and the retention time of single deep pollution removal effect can reach 5-15 days；
? One machine with multiple functions: with deep cleaning and emergency quick cleaning working mode; Optional hand-held washer for deep cleaning of sidewalks；
? Intelligent and humanized operation: 360 degree video monitoring and intelligent anti-collision system; PM2.5, PM10 automatic real-time pollution monitoring system；
?It can meet the requirements of deep cleaning of roads in factories such as steel and coal mines and industrial sites such as ports and docks, and curb road dust from the source.
| Parameter item | Parameter value |
| Overall dimensions (length × wide × High)（mm） | 7030×2200×2765 |
| Maximum mass（kg） | 10500 |
| Power mode | Pure electric |
| Volume of clean water tank（m3） | 3.2 |
| Sewage tank volume（m3） | 4.5 |
| Working pressure of high pressure jet（MPa） | 30 |
| Operating speed（km/h） | 0-10 |
| Standard working width（mm） | 2200 |
| Left and right lateral displacement of high-pressure jet cleaning device（mm） | ±300 |
| Chassis brand | Isuzu |
| Chassis specifications（mm） | 4×2 |
| Battery capacity（kWh） | 218.54 |
| Fuel type | Lithium iron phosphate battery (Ningde Times) |
Note: The above parameters are for reference only
暫無
“Haishan Hurricane” FHS5080TWQWFCEV(Hydrogen energy) fuel cell road pollution removal vehicle is driven by hydrogen fuel+battery and has zero emissions. Based on the high efficiency composite turbine and other technologies with dozens of patents of Hasan, the existing equipment can completely solve the problem that the existing equipment can not effectively remove pollutants such as road scale, hardening and oil contamination, and curb road dust from the source. It can be widely used in the deep cleaning of roads, airports, docks, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances, It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.
Product advantages：
? Adopt hydrogen+power cell fuel type to achieve zero emission;
? Cold start capability is lower than – 30 ℃, more suitable for various temperature and climate environments；
? 495L super hydrogen capacity, hydrogenation time only takes 5 minutes, fast and worry free；
? Dual power system can ensure 50km emergency mileage when hydrogen is exhausted；
? Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, and no sewage residue and leakage；
? With permeability/drainage performance and road function recovery function, the operation effect of the product is far superior to that of similar foreign products；
? With powerful functions, a single equipment can replace complete sets of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy；
? The operation frequency is significantly reduced compared with the traditional combined operation mode, and the effect of single deep pollution removal lasts for 5-15 days；
?One machine with multiple functions: it has the working modes of deep cleaning, emergency quick cleaning and curb cleaning, and can optionally be equipped with a hand-held cleaner for deep cleaning of sidewalks；
? Intelligent and humanized operation: 360 degree video monitoring and intelligent anti-collision system; PM2.5, PM10 automatic real-time pollution detection system；
? Meet the requirements for deep cleaning of roads in factories such as iron and steel, coal mines, ports, docks and other industrial sites, and curb road dust from the source.
| Parameter item | Parameter Value |
| Overall dimensions (length × wide × High)（mm） | 7010×2130×2610 |
| Maximum mass（kg） | 8280 |
| Power mode | Pure electric |
| Volume of clean water tank（m3） | 2.8 |
| Sewage tank volume（m3） | 2.8 |
| Working pressure of high pressure jet（MPa） | 30 |
| Operating speed（km/h） | 0-10 |
| Standard working width（mm） | 2130 |
| Left and right lateral displacement of high-pressure jet cleaning device（mm） | ±200 |
| Chassis brand | Isuzu |
| Chassis specifications | 4×2 |
| Battery capacity（kWh） | 47.69 |
| Fuel type | Hydrogen energy+lithium iron phosphate battery |
Note: The above parameters are for reference only
The “Haishan Hurricane” FHS5080TWQDBEV（Pure electric） road pollution removal vehicle adopts a pure electric drive mode with zero emissions. Based on the high efficiency composite turbine and other technologies with dozens of patents of Hasan, the existing equipment can completely solve the problem that the existing equipment can not effectively remove pollutants such as road scale, hardening and oil contamination, and curb road dust from the source. It can be widely used in the deep cleaning of roads, airports, docks, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances, It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.
Product advantages：
? It matches the large power and high energy density lithium iron phosphate battery of Ningde Times, which is green, environmentally friendly, has a long service life, good environmental adaptability, strong safety protection, and more stable discharge;
? The whole vehicle has a long range and good mute effect, which can meet various complex urban working conditions (traffic jam, air conditioning in summer, etc.)；
? Short charging time, low power consumption, full charge only takes 2 hours；
? Strong adaptability, high reliability, and mature and reliable power assemblies；
? Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, and no sewage residue and leakage;
? With permeability/drainage performance and road function recovery function, the operation effect of the product is far superior to that of similar foreign products；
? With powerful functions, a single equipment can replace the complete set of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy;
?The operation frequency is significantly reduced compared with the traditional combined operation mode, and the effect of single deep pollution removal lasts for 5-15 days;
? One machine with multiple functions: it has the working modes of deep cleaning, emergency quick cleaning and curb cleaning, and can optionally be equipped with a hand-held cleaner for deep cleaning of sidewalks;
? Intelligent and humanized operation: 360 degree video monitoring and intelligent anti-collision system; PM2.5, PM10 automatic real-time pollution detection system;
?It can meet the requirements of deep cleaning of roads in factories such as steel and coal mines and industrial sites such as ports and docks, and curb road dust from the source.
| Parameter item | Parameter value |
| Overall dimensions (length × wide × High)（mm） | 6960×2100×2460 |
| Maximum mass（kg） | 8495 |
| Power mode | Pure electric |
| Volume of clean water tank（m3） | 2.8 |
| Sewage tank volume（m3） | 2.8 |
| Working pressure of high pressure jet（MPa） | 30 |
| Operating speed（km/h） | 0-10 |
| Standard working width（mm） | 2100 |
| Left and right lateral movement of high-pressure jet cleaning device（mm） | ±200 |
| Chassis brand | Dongfeng Huashen |
| Chassis specifications | 4×2 |
| Battery capacity（kWh） | 157 |
| Fuel type | Lithium iron phosphate battery (Ningde Times) |
Note: The above parameters are for reference only
The “Haishan Hurricane” FHS5040TWQYBEV（Pure electric） road pollution removal vehicle adopts a pure electric drive mode with zero emissions. Based on the high efficiency composite turbine and other technologies with dozens of patents of Hasan, the existing equipment can completely solve the problem that the existing equipment can not effectively remove pollutants such as road scale, hardening and oil contamination, and curb road dust from the source. It can be widely used in the deep cleaning of roads, airports, docks, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances, It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.
Product advantages：
? The vehicle can be driven with certificate C, meeting the working conditions in narrow areas such as back streets, scenic spots and factories；
? Innovative middle left and right cleaning tray+water broom structure, which can clean the marking and curb separately；
? The top is equipped with a rotatable boom, which can be washed over barriers such as roadside guardrails and parked vehicles；
? The whole vehicle adopts mechanical low-speed cruise technology, which can achieve at least 1km/h operation, with more efficient transmission and energy saving；
? It matches the large power and high energy density lithium iron phosphate battery of Ningde Times, which is green, environmentally friendly, has a long service life, good environmental adaptability, strong safety protection, and more stable discharge;
? The whole vehicle has a long range and good mute effect, which can meet various complex urban working conditions (traffic jam, air conditioning in summer, etc.)；
? Short charging time, low power consumption, full charge only takes 70 minutes；
? Strong adaptability, high reliability, and mature and reliable power assemblies；
? Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, and no sewage residue and leakage；
? With permeability/drainage performance and road function recovery function, the operation effect of the product is far superior to that of similar foreign products；
? With powerful functions, a single equipment can replace complete sets of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy；
? The operation frequency is significantly reduced compared with the traditional combined operation mode, and the effect of single deep pollution removal lasts for 5-15 days；
? One machine with multiple functions: deep cleaning, emergency quick cleaning, zebra crossing cleaning, curb cleaning, boom obstacle crossing cleaning, etc；
? Intelligent and humanized operation: 360 degree video monitoring and intelligent anti-collision system。
| Parameter item | Parameter value |
| Overall dimensions (length × wide × High)（mm） | 5995×1800×2360 |
| Maximum mass（kg） | 4495 |
| Power mode | Pure electric |
| Volume of clean water tank（m3） | 1.5 |
| Sewage tank volume（m3） | 1.5 |
| Working pressure of high pressure jet（MPa） | 30 |
| Operating speed（km/h） | 0-10 |
| Standard working width（mm） | 1800 |
| Operation width of central cleaning tray（mm） | 435 |
| Width of cleaning tray opening operation（mm） | 2235 |
| Chassis brand | 上汽躍進(jìn) |
| Chassis specifications | 4×2 |
| Battery capacity（kWh） | 98 |
| Fuel type | Lithium iron phosphate battery (Ningde Times) |
Note: The above parameters are for reference only
The “Haishan Hurricane” FHS5250TWQZE6NG road pollution removal vehicle is driven by natural gas (LNG), which is fully discharged in the sixth national standard. High efficiency composite turbine technology based on dozens of patents of Hasan has completely solved the problem that existing equipment cannot effectively remove pollutants such as road scale, hardening and oil contamination, and has curbed road dust from the source to achieve the goal of sitting on the ground. It can be widely used in the deep cleaning of roads, airports, wharves, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances. It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods.
Product advantages：
? Large capacity LNG bottle is adopted, which is green and environmentally friendly, with long service life, good environmental adaptability and more safety;
? Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, restore the road color, and there is no sewage residue and leakage；
? Hydrostatic traveling drive, with automatic cruise function; Equipped with a water broom to clean the curb；
? The single engine design is adopted, and the whole vehicle has national six emission, with outstanding environmental protection performance；
? With permeable/drainage road function recovery function, the operation effect of the product is far superior to that of similar foreign products；
? With powerful functions, a single equipment can replace complete sets of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy；
? The frequency of operation is significantly reduced compared with the traditional combined operation mode, and the retention time of single deep pollution removal effect can reach 5-15 days；
? Meet the requirements for deep cleaning of roads, steel plants, chemical plants, ports, docks and other roads, and curb road dust from the source。
? One machine with multiple functions: with deep cleaning and emergency quick cleaning working mode; The tail can be equipped with boom suction device, which can be connected with suction hose for fast suction of sand, soil, water and other materials; Optional hand-held washer for deep cleaning of sidewalks；
? Intelligent and humanized operation: 360 ° video monitoring and intelligent anti-collision system; PM2.5, PM10 automatic real-time pollution monitoring system.
| Parameter item | Parameter value |
| Overall dimensions (length × wide × High)（mm） | 10200×2550×3300 |
| Maximum mass（kg） | 25000 |
| Power mode | natural gas |
| Volume of clean water tank（m3） | 7 |
| Sewage tank volume（m3） | 8 |
| Working pressure of high pressure jet（MPa） | 30 |
| Operating speed（km/h） | 0-10 |
| Width of pollution removal operation（mm） | 2500 |
| Left and right lateral displacement of high-pressure jet cleaning device（mm） | ±300 |
| Chassis brand | China heavy truck |
| Chassis specifications | 6×4 |
| Engine power（kW） | 297 |
| Fuel type | LNG |
| emission standard | National VI |
Note: The above parameters are for reference only
The “Haishan Hurricane” FHS5180TWQZE6NG road pollution removal vehicle adopts the natural gas (LNG) drive mode and is fully discharged in the sixth national standard High efficiency composite turbine technology based on dozens of patents of Hasan has completely solved the problem that existing equipment cannot effectively remove pollutants such as road scale, hardening and oil contamination, and has curbed road dust from the source to achieve the goal of sitting on the ground. It can be widely used in the deep cleaning of roads, airports, wharves, freight yards, power plants, steel mills, mines, squares and other important occasions, as well as the removal of nuclear, biochemical and other toxic substances. It is an indispensable important equipment for sponge cities (functional recovery of permeable and drainage roads), and also an efficient tool for disaster rescue such as floods。
Product advantages：
? Large capacity LNG bottle is adopted, which is green and environmentally friendly, with long service life, good environmental adaptability and more safety;
? Ultra clean vacuum recovery, with outstanding effect on road cleaning, can completely and thoroughly remove road scale, sludge, oil dirt, heavy metals, restore the road color, and there is no sewage residue and leakage；
? Hydrostatic traveling drive, with automatic cruise function; Equipped with a water broom to clean the curb；
? The single engine design is adopted, and the whole vehicle has national six emission, with outstanding environmental protection performance；
? With permeable/drainage road function recovery function, the operation effect of the product is far superior to that of similar foreign products；
? With powerful functions, a single equipment can replace complete sets of traditional cleaning equipment such as cleaning, washing, flushing and dirt absorption, with high comprehensive economy；
? The frequency of operation is significantly reduced compared with the traditional combined operation mode, and the retention time of single deep pollution removal effect can reach 5-15 days；
? Meet the requirements for deep cleaning of roads, steel plants, chemical plants, ports, docks and other roads, and curb road dust from the source。
? One machine with multiple functions: with deep cleaning and emergency quick cleaning working mode; The tail can be equipped with boom suction device, which can be connected with suction hose for fast suction of sand, soil, water and other materials; Optional hand-held washer for deep cleaning of sidewalks；
? Intelligent and humanized operation: 360 ° video monitoring and intelligent anti-collision system; PM2.5, PM10 automatic real-time pollution monitoring system。
| Parameter item | Parameter value |
| Overall dimensions (length × wide × High)（mm） | 9590×2500×3135 |
| Maximum mass（kg） | 18000 |
| Power mode | natural gas |
| Volume of clean water tank（m3） | 7.5 |
| Storage bin volume（m3） | 8 |
| Working pressure of high pressure jet（MPa） | 30 |
| Operating speed（km/h） | 0-10 |
| Width of pollution removal operation（mm） | 2500 |
| Left and right lateral displacement of high-pressure jet cleaning device（mm） | ±300 |
| Chassis brand | China heavy truck |
| Chassis specifications | 4×2 |
| Engine power（kW） | 297 |
| Fuel type | LNG |
| emission standard | National VI |
| Working radius of boom（mm） | 2000 |
| Inside diameter of suction pipe（mm） | 200 |
| Swing angle（。） | 180 |
| Suction pipe length（mm） | 4300 |
Note: The above parameters are for reference only
